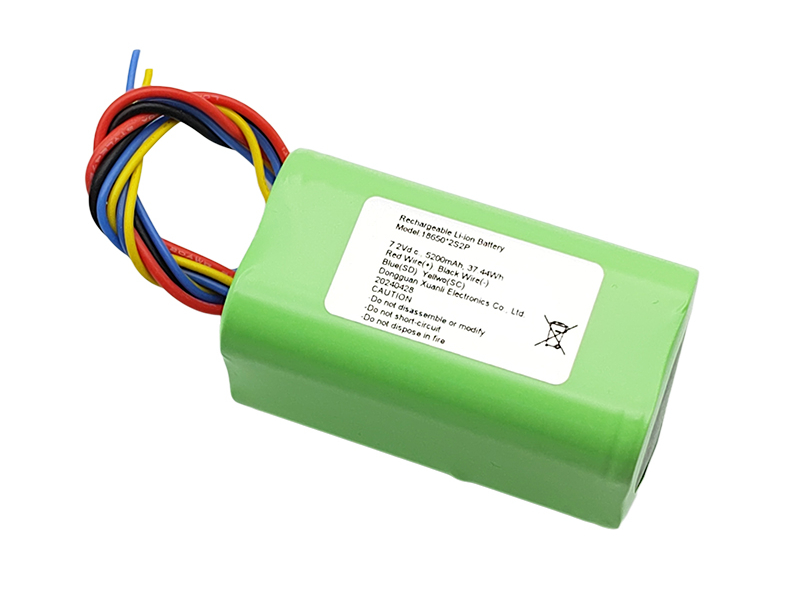

7.2V communication lithium battery Model: XL 18650 7.2V 5200mAh
7.2V communication lithium battery technical parameters (specific design according to customer requirements - voltage/capacity/size/line)
· Single battery model: 18650
· Single battery voltage: 3.6V
· Nominal voltage after battery pack combination: 7.2V
· Battery capacity: 2.6Ah
· Battery combination: 2 series 2 parallel
· Battery voltage range after combination: 5.0V-8.4V
· Combined battery capacity: 5.2ah
· Battery power: 37.44Wh
· Battery pack size: 40*40*67mm
· Maximum discharge current: <5.2A
· Instantaneous discharge current: 10.4A-15.6A
· Maximum charging current: 0.2-0.5c
· Charge and discharge times: > 500 times
· Main chips: (Seiko, TI)
7.2V communication lithium battery
· Meet the relevant national battery standards and requirements
· All finished batteries are calibrated and tested before leaving the factory and can be used directly.
